The video describes (in 2 different examples with 1 and 2 robots and external axes) how to assign one or several tool paths (including meanders etc.), which has been created in the setup, to a robot in a workflow. This specifies (initally) which robots are executing which tool-paths at which time. Assignment, order and timing can be changed later easily.
The video is embedded by YouTube and only loaded and played from there when you click on the play button. From then on, the privacy policy of Google applies.
Add and select actions #

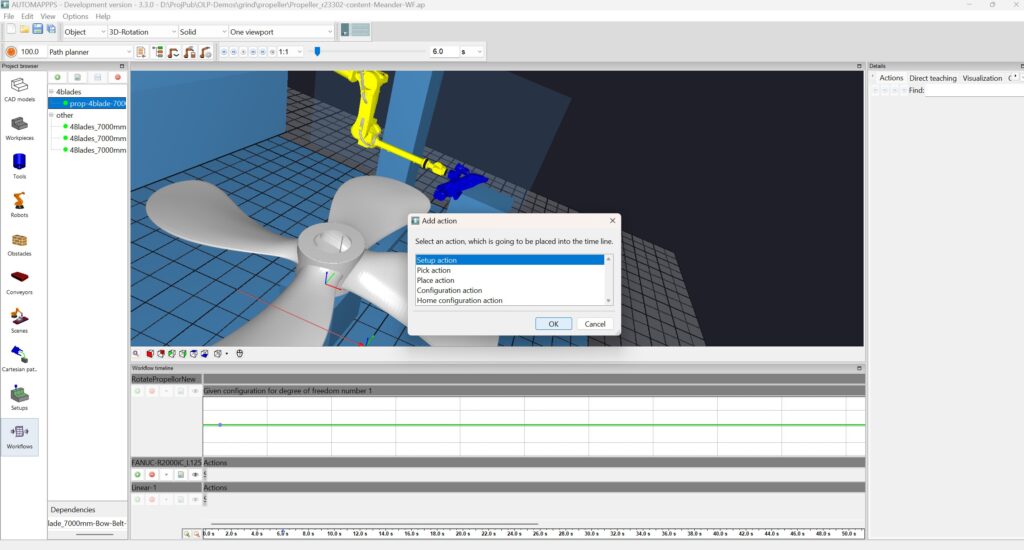

To assign a path or meander from the setup into an action to be executed by the robot, click on the robot, press “add” (+), see also the following images (1) and (2), and select “setup action”.

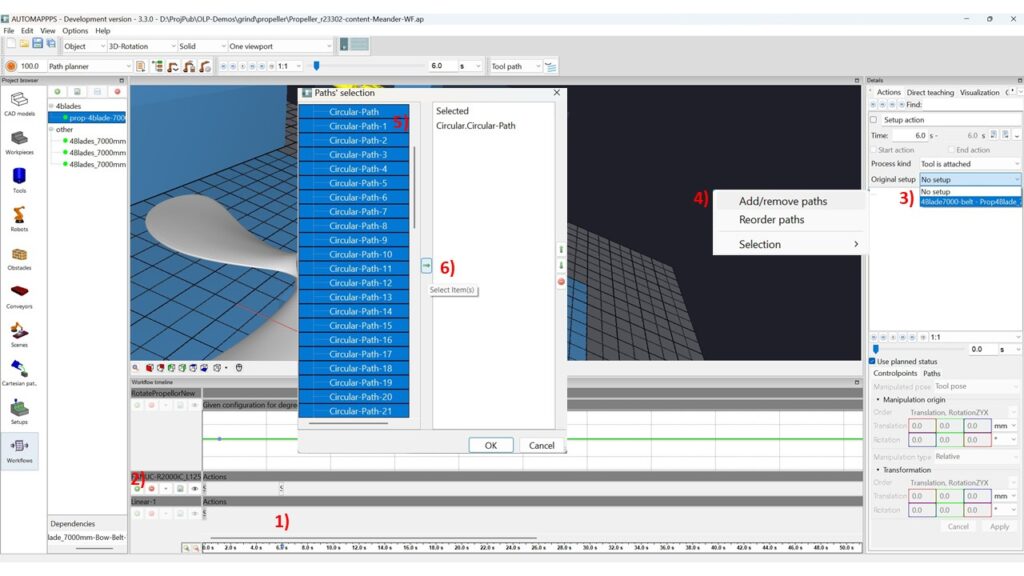

3) Chose from which setup you want to select the paths from. Note: the menue propopses only those setups with the same tool and workpiece / part. 4) Select “Add/remove paths”. In the pop-up menue, select the meanders or individual paths (5) you want to assign to the action and assign them (6).

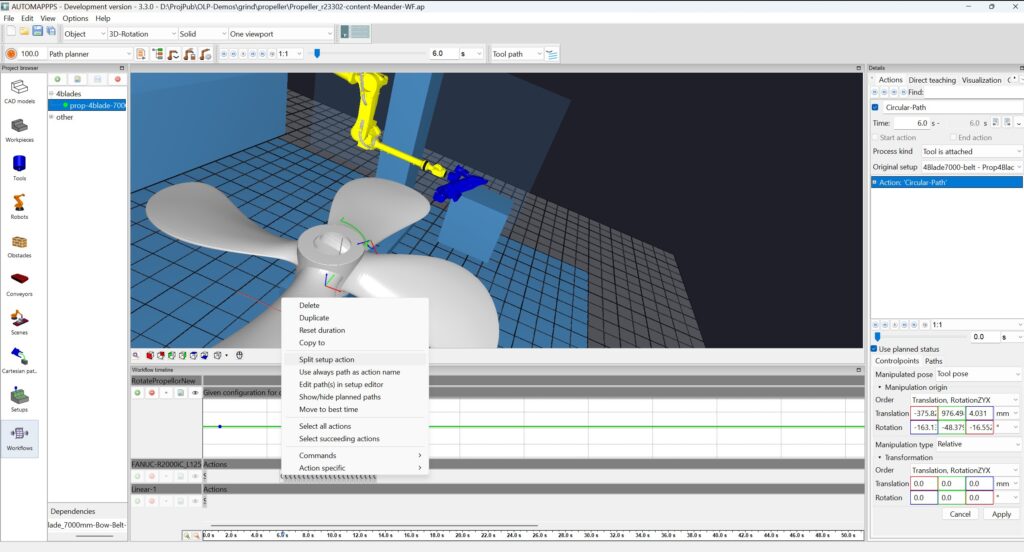

As a result you get a single action containing all the paths. Select the action (left-mouse click) and open the pop-up menue and chose “Split setup action”. The action is split into one action per one path. This step is not a must, but makes it easier to interprete which paths can not executed (green) and which can not (red) rather than a mix of possible and impossible paths (yellow).
